T25 |
T28 |

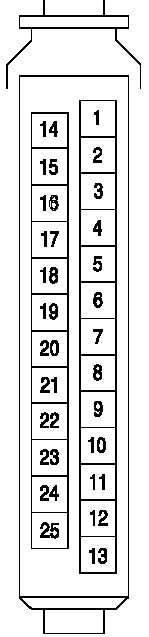

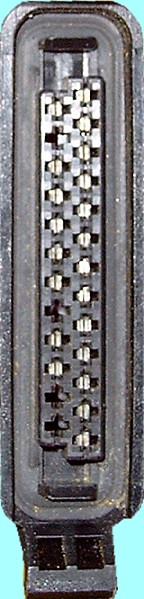

Description |
Color |
|
1 |
plus connection injector valves from fuel pump relay |
red |
|
8 |
Plus connection (15) in Digifant muliport fuel injection wiring harness,
pin 2 idle valve, pin 3 ignition coil, |
black |
|
9 |
ground connection for heating of oxygen sensor |
brown/black |
|
10 |
engine oil pressure sensore |
green/red |
|
17 |
Ignition transformer Pin 1, ground connection to/from instrument panel |
|
|
18 |
Generator to warning light in speedometer |
blue |
|
21 |
plus connection from fuel pump relay for heating of oxygen sensor |
red/black |
|
23 |
Backup light switch |
black/grey |
|
27 |
Plus from ECM relay to EVAP valve pin 2 |
brown/black |
1 |
|
input +, ignition switch - starter pin 50 |
red/black |
2 |
7 |
input +, from heated oxygen sensor, lambda probe, pin 4 |
green |
3 |
|
output -, from ecu switched ground line for fuel pump relay, wired over
alarm system control module pin 22 and 23 |
red/yellow |
4 |
11 |
output - to idle air control valve pin 1 |
white |
5 |
12 |
output - to EVAP valve pin 1 |
green/yellow |
6 |
4 |
ground connection in Digifant muliport fuel injection wiring harness |
brown/white |
7 |
26 |
ground connection in Digifant muliport fuel injection wiring harness |
brown |
8 |
14 |
output +, current for hallsensor |
red/black |
9 |
19 |
input +, from intake air temperature sensor |
violet/black |
10 |
3 |
input +, from engine temperature sensor |
brown/red |
11 |
16 |
output +, pin 2 of throttle position sensor |
yellow/red |
12 |
2 |
output - to injection valves |
brown |
13 |
|
Ground connection transmission harness |
brown |
14 |
|
input + from ECM relay |
black/yellow |
15 |
|
not used |
|
16 |
|
??? former ground connection |
|
17 |
15 |
input +. from pin 1 of throttle postion sensor |
blue |
18 |
13 |
input +, from camshaft position sensor, hallsensor pin 2 |
green/white |
19 |
22 |
output -, to heated oxygen sensor pin 3 |
red |
20 |
|
OBD plug in engine compartment pin 1 |
grey/white |
21 |
|
not used |
|
22 |
|
output - to switch ECM relay |
black/white |
23 |
6 |
output +(-) to ignition transformer pin 2 |
green/black |
24 |
|
not used |
|
25 |
|
not used |
|
